There are 3 field types that enable you to capture data on a repeating basis: the Page field, the Table field and the Gallery field.
You can use any of these 3 repeatable field types to enable your users to capture multiple data entries.
Please note that placing repeating tables inside repeating pages is not supported on output templates and not recommended within a form design. Please see this article for more details.
Page Field
Page fields allow grouping of various fields together in one screen with optional repeatable functionality.
By selecting a Page field that has been added to your Form Designer, you can view its Basic Properties that will allow you to configure the following properties.
- Repeatable
- Repeat Range
- Prevent Deletion of Repeats
You can access the page’s Basic Properties by left clicking on the page field as shown below.
1. REPEATABLE
Allow this page to repeat its fields. The App will prompt the user as to whether they want to keep adding more repeats of this Page.
2. REPEAT RANGE
Minimum and/or maximum times this page should be repeated. If Minimum is set, the App will automatically repeat this Page that number of times. Thereafter the user is prompted to add more. Once Maximum repeats is reached, the App will move to the next Page
3. PREVENT DELETION OF REPEATS
By default, users can delete repeats via a button provided at the top of each repeatable Page. This option removes the button, preventing repeat deletion. This is useful for cases such as pre-populated and/or fixed repeats.
NOTE: The Page title will appear as part of the prompt when being asked to add a repeat. Keep this in mind when giving the Page a title.
Table Field
Table fields allow the capture of repeating rows of information within a Form page.
Fields with desired repeat entries added into the table field in the Form Designer will be displayed as rows with the respective field titles as column headers in the App.
NOTE: The Table field has its own dotted line border that indicates fields within it.
By selecting a Table field that has been added to your Form Designer, you can view its Basic Properties that will allow you to configure the following properties.
- New Row Button
- Table Paging Size
- Row limits
- Prevent Deletion of Repeats

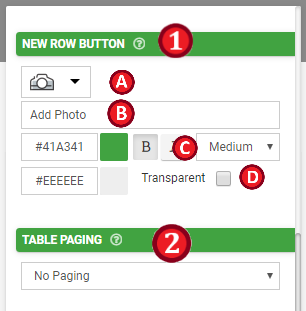

1. NEW ROW BUTTON
Customize the button that allows the user to add new rows to the Table. If this is left blank, a standard button is shown with text of 'Add Row' or local equivalent.
A. Button icon
B. Button text
C. Customize button text
D. Customize button background
2. TABLE PAGING SIZE
The maximum number of rows to display on this Table. If the Table is populated with more rows than this maximum, the app will show paging buttons to enable the user to look through all rows.
3. ROW LIMITS
Minimum and/or maximum rows this table can contain.
NOTE: Maximum can be no larger than 50 rows currently.
4. PREVENT DELETION OF ROWS
By default, users can delete rows via a button provided at the top of each Row Page. This option removes the button, preventing row deletion. This is useful for cases such as pre-populated and/or fixed Table rows.
In the App, selecting the “add new” button to create an entry or selecting a row to edit the fields of an existing entry is how the Table field is populated with repeating data.
NOTE: While you can take photos in a Table field, they won't be displayed as rows in the Table on the mobile App.
In both cases above, you will be able to capture as many repeat instances of your target fields as desired.
Gallery Field
Please see this article for details about the Gallery Field.
