Details Screen Type

The Details Screen Type is one of our data perusal screens. This screen type is data-driven and enables you to visualize the rows in a data source.

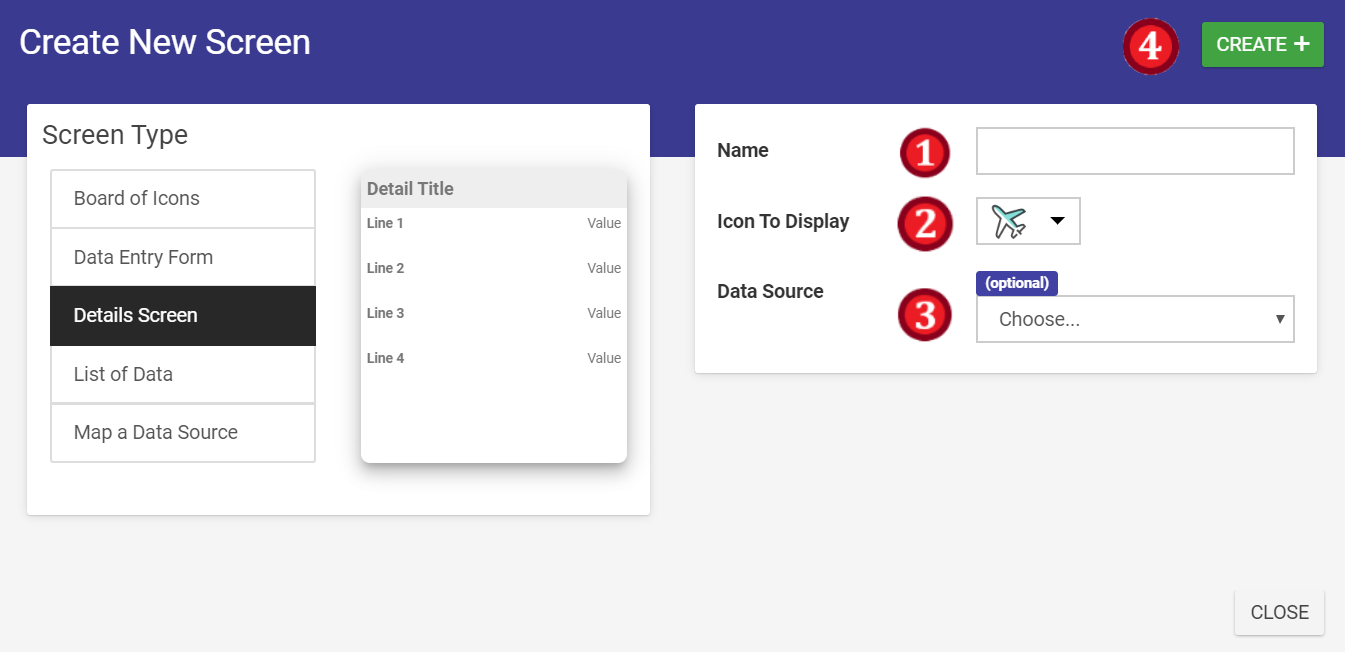

To add a details screen, navigate to Apps -> Screens. Click on the ADD NEW+ button

  1. Name your Details Screen
  2. Select a suitable icon
  3. Select your data source (optional)
  4. Click on the CREATE+ button

Configuring the Title bar

  1. Data source - A selection of connected data sources within your app to which to relate your configuration.
  2. Screen Title - This will be populated with the name of your screen.
  3. Action Buttons - Define buttons to appear on the title bar.
    • Select which button you'd like to configure: LEFT, RIGHT1 or RIGHT2
    • Select an icon
    • Add the button text
    • Select the button colors

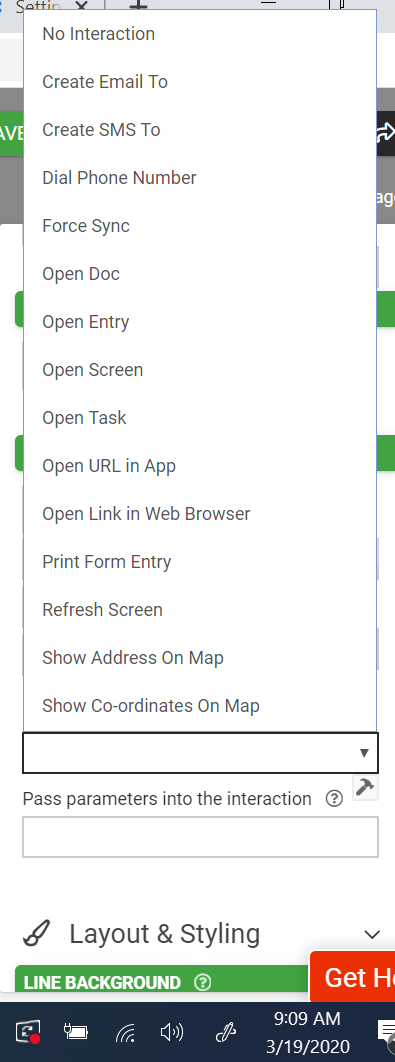

    • Select the user interaction. E.g.,
    • Visibility selection check box
    • Button Visibility - Control the visibility of this button using a formula

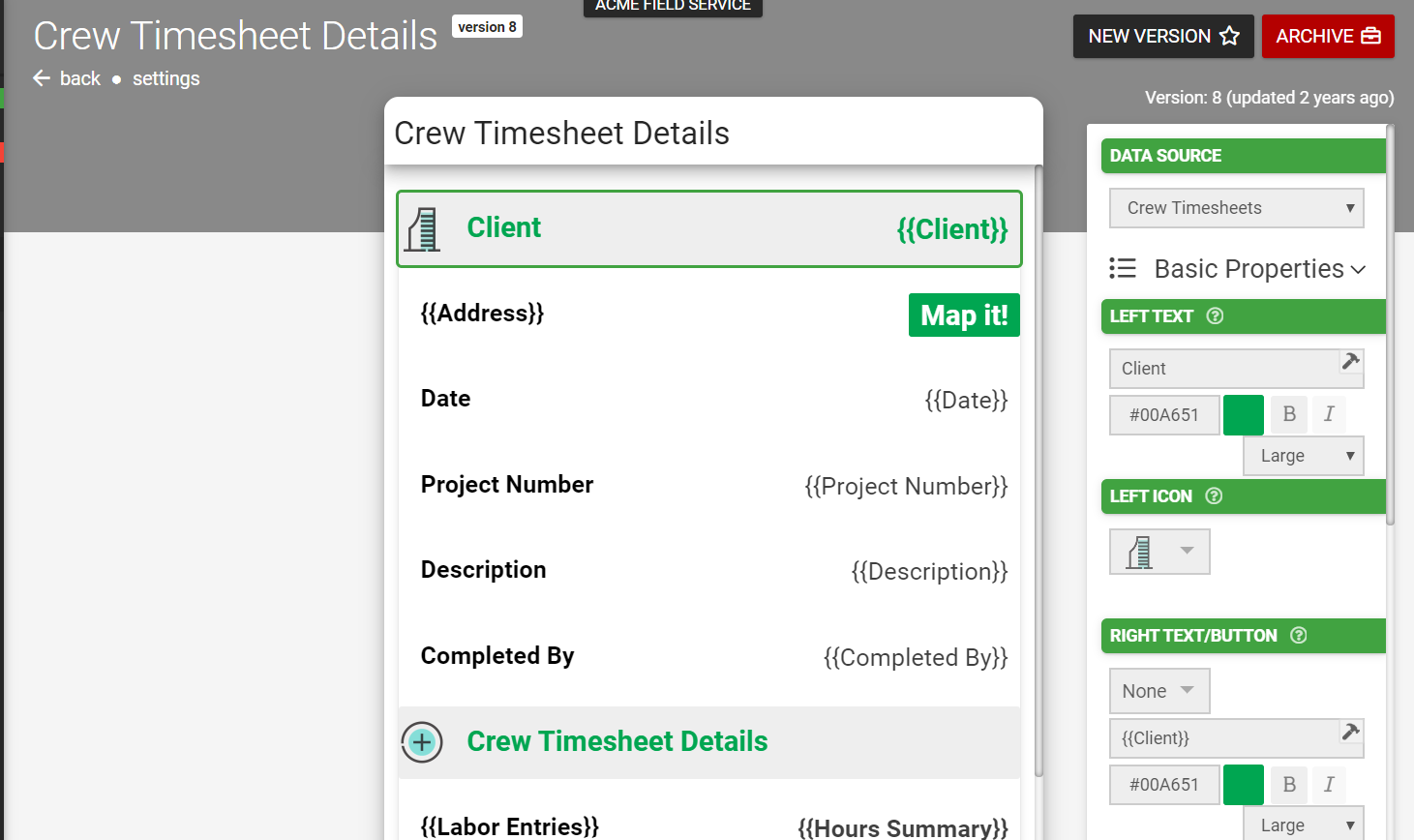

Detail Lines

Select Add a Detail Line to create a new entry.

Data source – A selection of connected data sources within your app to which to relate your configuration of the detail line.

Basic Properties

  • Left Text - Static text and dynamic values related to the data source can be entered here. Color, font and text size can also be adjusted.
  • Left Icon - The icon image displayed for this detailed line. Having no icon selected for display is also an option.
  • Right Text/Button - Same as left text and left icon combined but on the right-hand side of the field. Color, font and text size can also be adjusted.

A user interaction can also be configured with the same choices as above.

Layout & Styling

  • Line Background – Choose the color of the detail lines background.
  • Transparency tick box – Select to make the background transparent and vice versa.

Validation & Behavior

  • Line Visibility - Control the visibility of a detail line with formulae and relatable data.
  • Display format (retired) – A legacy value now replaced by formula functions; e.g., FORMAT-DATE(), FORMAT-NUMBER().
